C15725 RWMA Class 22 Dispersion Strengthened Copper Alloy Rods
Product Normal Description:
| Product Name | Dispersion stengthened copper alloy rods |
|---|
| Model No. | C15725 RWMA Class 2 |
|---|
| Product Specification: | Custom specification is available upon request. |
|---|
| Available Products: | Round rods, bars, wire, flat products |
|---|
| Delivery Time: | Usually within 10~15 days |
|---|
| Package: | Packed in woodencases |
|---|
| Brand Name: | CUBERYLLIUM® |
|---|
About CUBERYLLIUM®:
Hangzhou Cuberyllium Metal Technology Co.,Ltd. specialized in
supplying beryllium copper alloys, high copper alloys, casting
copper alloys, copper foil and other copper alloys. Our products
have broadly been used in resistance welding, plastic injetion
mold, aviation, shipbuilding, military industry, metallurgy,
electronics industry and so on. We strive to offer high quality
with competitive price due to our advanced technology and
equipment.
You may interest in these products:
Beryllium Copper Alloys: C17200. C17300, C17510, C17500
Chromium Zirconium Copper Alloys: C18000, C18150, C18200
Dispersion Strengthened Copper Alloys: C15715, C15725, C15760
All product shapes could be made according customers' requirement:
1, Round rods, bars
2, Strips, coils
3, Tubes
4, Wires
5, Rings
6, Plates
If you have any inquiry, plz kindly contact with us, we will supply
you professional technical support.
Chemical Composition of C15725 RWMA Class 22 Dispersion
Strengthened Copper Alloy:
Product Grade: CUBERYLLIUM ®-C15725 (RWMA Class 22)
| Aluminum | 0.25% by wt. as Al₂O₃ |
| Cu: | Balance |
Typical Physical Properties of C15725 RWMA Class 22 Dispersion Strengthened Copper Alloy:
| Melting Point | 1083°C |
| Density | 8.86 g/cm3 at 20°C |
| Electrical Conductivity (σ) | 0.504 μ Ω-cm at 20°C |
| Thermal Conductivity (K) | 344 W/m/K at 20°C |
| Electrical Resistivity (ρ) | 1.98 μ Ω-cm at 20°C |
| Coefficient of Thermal Expansion | 16.6 μm/m/°C (20-150°C) |
| Modulus of Elasticity (Tension) (λ) | 130 Gpa |
Mechanical Properties of C15725 RWMA Class 22 Dispersion Strengthened Copper Alloy:
| Shapes | Thickness or Dia. | Temper | Tensile Strength | Yield Strength | Elongation | Hardness |
| mm | in | or Condition | MPa | ksi | MPa | ksi | % | HRB |
Flat products | 10 | 0.400 | As Cons.* | 434 | 63 | 345 | 50 | 21 | 72 |
| 2.3 | 0.090 | CW 78% | 586 | 85 | 544 | 79 | 8 | 83 |
| 0.15 | 0.006 | CW 98% | 675 | 98 | 613 | 89 | 6 | - |
Plate | Up to 130 | 5.0 | As Cons. | 413 | 60 | 296 | 43 | 19 | 68 |
| 25 | 1.0 | CW 60% | 496 | 72 | 441 | 64 | 9 | - |
| 16 | 0.625 | CW 75% | 524 | 76 | 467 | 68 | 9 | - |
Rod | 38 | 1.5 | As Cons. | - | 64 | - | 52 | 24 | 73 |
| 6.4 | 0.25 | As Drawn | 551 | 80 | 531 | 77 | 14 | 76 |
| Rounds | Up to 760 | 30 | As Cons. | 413 | 60 | 296 | 43 | 19 | 68 |

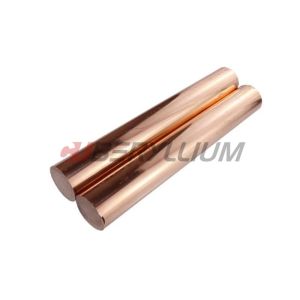

Product Photos:
