JIS C172 BeCu Beryllium Copper Wire TD01 TB00 For
Springs,Automobile
Physical Properties:
Density (g/cm3): 8.36
Elastic Modulus (GPa): 131
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17.5×10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980 °C
Typical Applications:
1)Relay Blades, Fuse Clips, Switch Parts, Relay parts
2)Connectors, Spring Connectors, Contact Bridges
3)Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins,
Screws, Bolts
4)Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety
Tools
5)Flexible Metal Hose, Housings for Instruments, Bearings,
Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding
Equipment
6)Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on
Heavy Equipment, Bellows
Chemical Composition:
Be: 1.85-2.10%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.
International Specification of C17200 Beryllium Copper Alloy:
| Product Type | Temper Type |
| Bar | ASTM B196 |
| Military Mil-C-21657 |
| Rod | ASTM B196 |
| Military Mil-C-21657 |
| Wire | ASTM B197, AMS4725, SAE J461,463, RWMA Class 4 |
| European Standards | CuBe2, Alloy 25, BrB2, DIN.2.1247, CW101C to EN |
Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification(Published by SEA)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced by
ASTM.
Mechanical and Electrical Properties of C17200 Beryllium Copper
Wire:
| Alloy | Temper (*) | Heat Treatment | Tensile Strength Mpa | Elongation percent | Electrical Conductivity percent IACS |
CUBERYLLIUM
172 | A | / | 400～580 | 30-60 | 15-19 |
| (TB00) |
| 1/4 H | / | 570～795 | 3~25 | 15-19 |
| (TD01) |
| 1/2 H | / | 710～930 | 2~15 | 15-19 |
| (TD02) |
| 3/4 H | / | 840～1070 | 2~8 | 15-19 |
| (TD03) |
| H | / | 915～1140 | 1~6 | 15-19 |
| (TD04) |
CUBERYLLIUM
172 | AT | 3 hr 315℃ | 1050~1380 | 3 min | 22-28 |
| (TF00) |
| 1/4 HT | 2 hr 315℃ | 1150~1450 | 2 min | 22-28 |
| (TH01) |
| 1/2 HT | 1.5hr 315℃ | 1200~1480 | 2 min | 22-28 |
| (TH02) |
| 3/4 HT | 1.0 hr 315℃ | 1250~1585 | 2 min | 22-28 |
| (TH03) |
| HT | 1.0hr 315℃ | 1300~1585 | 1 min | 22-28 |
(TH04)
|

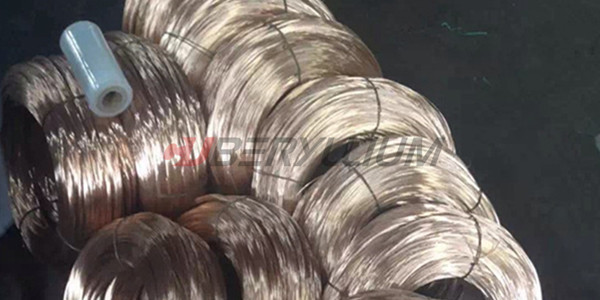

Product Photos:
CUBERYLLIUM®-172 is the most commonly specified copper beryllium ,In its age
hardened condition, CUBERYLLIUM®-172 attains the highest strength
and hardness of any commercial copper base alloy. The ultimate
tensile strength can exceed 1360Mpa(200 ksi), while the hardness
approaches Rockwell C45. Also, in the fully aged condition, the
electrical conductivity is a minimum of 22% IACS (International
Annealed Copper Standard). Alloy 172 also exhibits exceptional
resistance to stress relaxation at elevated temperatures.
More Products:
More range of copper and copper alloys, in full series of shapes:
Sheet, Bar, Tubes, Strips and Wire list as below:
C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)
FAQ:
Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?
A1: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous
Furnace.
3:Surface further polishing for top clients.
Q2: Why you melting by Vacuum semi-Continuous Furnace?
A2:Could be get the Cast ingot without gas,smaller segregation,
Grain Refinement.
Q3:Could you produce Beryllium Copper strip by Mill Hardened
process?
A3:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06)
XHMS(TM08).,we are the only factory could do harden strip in China.
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the
amount is different.
